Custom Electrical Panel Builder & Switchboard Manufacturer
Turnkey design, sheet-metal fabrication, busbar assembly, and wiring for low-voltage power distribution, MCC, APFC, ATS, and feeder pillar panels across India.
Tailored Low-Voltage Power Distribution & Control Switchboards
SS Exim is a leading electrical panel builder serving industrial plants, commercial high-rises, IT parks, and infrastructure projects across Mumbai, Pune, Bangalore, and pan-India. We engineer and manufacture custom LT switchboards using heavy-gauge CNC sheet metal, high-conductivity EC-grade copper/aluminum busbars, and switchgear selected to the approved project specification from Schneider Electric, ABB, Siemens, Havells, L&T, and NOARK.
Every panel is wired according to stringent electrical safety norms, featuring compartmentalized designs, IP-rated enclosures, clear phase identification, and pre-integrated Tor Titan energy meters or IBMS telemetry modules.
Explore Our In-House Fabricated Panel Portfolio
Main Distribution & Sub-Distribution Panels
Primary Low Voltage (LV) distribution switchboards designed to receive incoming power from transformers or diesel generators and distribute it to downstream sub-feeders. Outfitted with high-capacity Air Circuit Breakers (ACB) and Moulded Case Circuit Breakers (MCCB).
- ✓ Form 3b / Form 4 compartmentalized isolation options
- ✓ High short-circuit fault withstand capacity rating
- ✓ Integrated digital metering & busbar temperature monitoring
Motor Control Center (MCC) Panels
Custom MCC panels built to centralize electric motor control in manufacturing facilities, water treatment plants, and process lines. Configured with Direct-On-Line (DOL) starters, Star-Delta starters, Soft Starters, and Variable Frequency Drives (VFDs).
- ✓ Fully draw-out or fixed feeder compartment options
- ✓ Schneider / ABB / Siemens contactors & overload relays
- ✓ Integrated BMS / PLC speed modulation interfaces

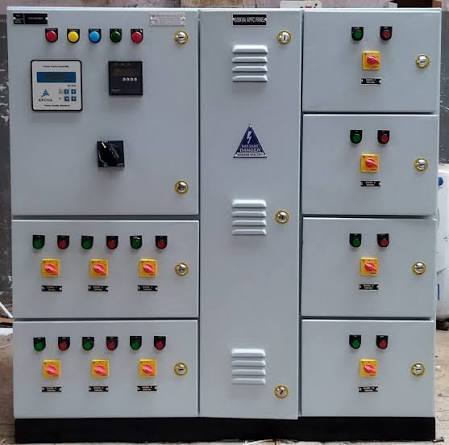

Automatic Power Factor Correction (APFC) Panels
APFC panels switch capacitor steps to manage power factor against a configured target. The achievable result, utility billing effect and switching method depend on measured loads, harmonics, the approved design and the applicable tariff.
- ✓ Microprocessor APFC relay controller with THD protection
- ✓ Heavy-duty MPP capacitors & detuned harmonic reactors
- ✓ Real-time power quality logging via Tor Titan MFM

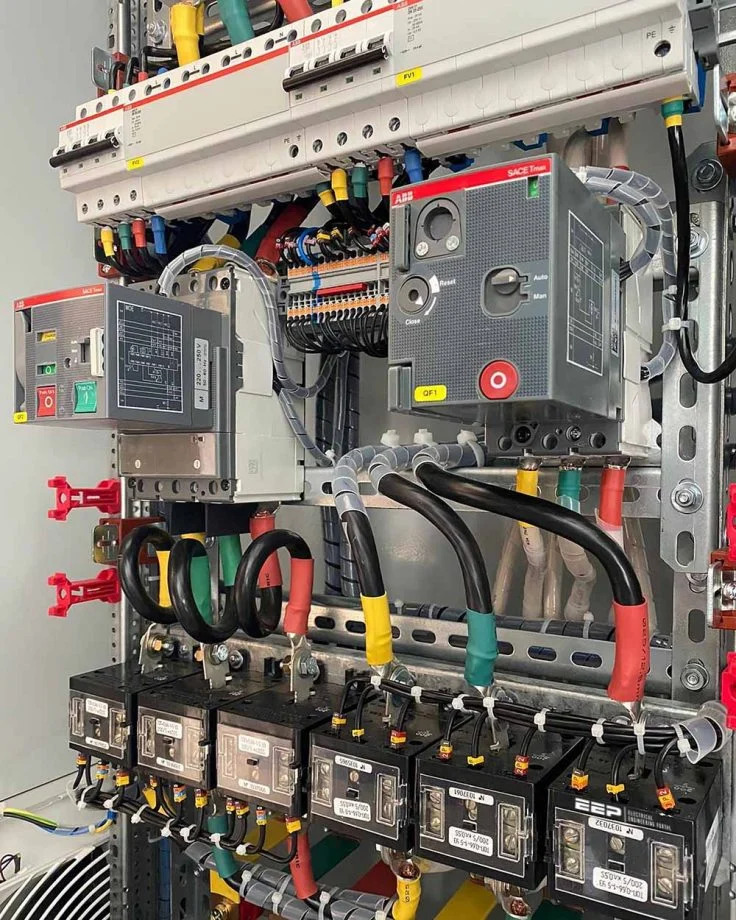

Automatic Transfer Switch (ATS) & Combined Distribution Panels
ATS panels ensure uninterrupted power supply by automatically transferring load between primary grid utility power and backup diesel generators upon mains failure, and switching back when mains power stabilizes.
- ✓ Motorized 4-Pole ACBs / Changeover switches with electrical interlocks
- ✓ Adjustable mains sensing voltage/frequency delay timers
- ✓ Combined ATS cum Main Distribution panel enclosures

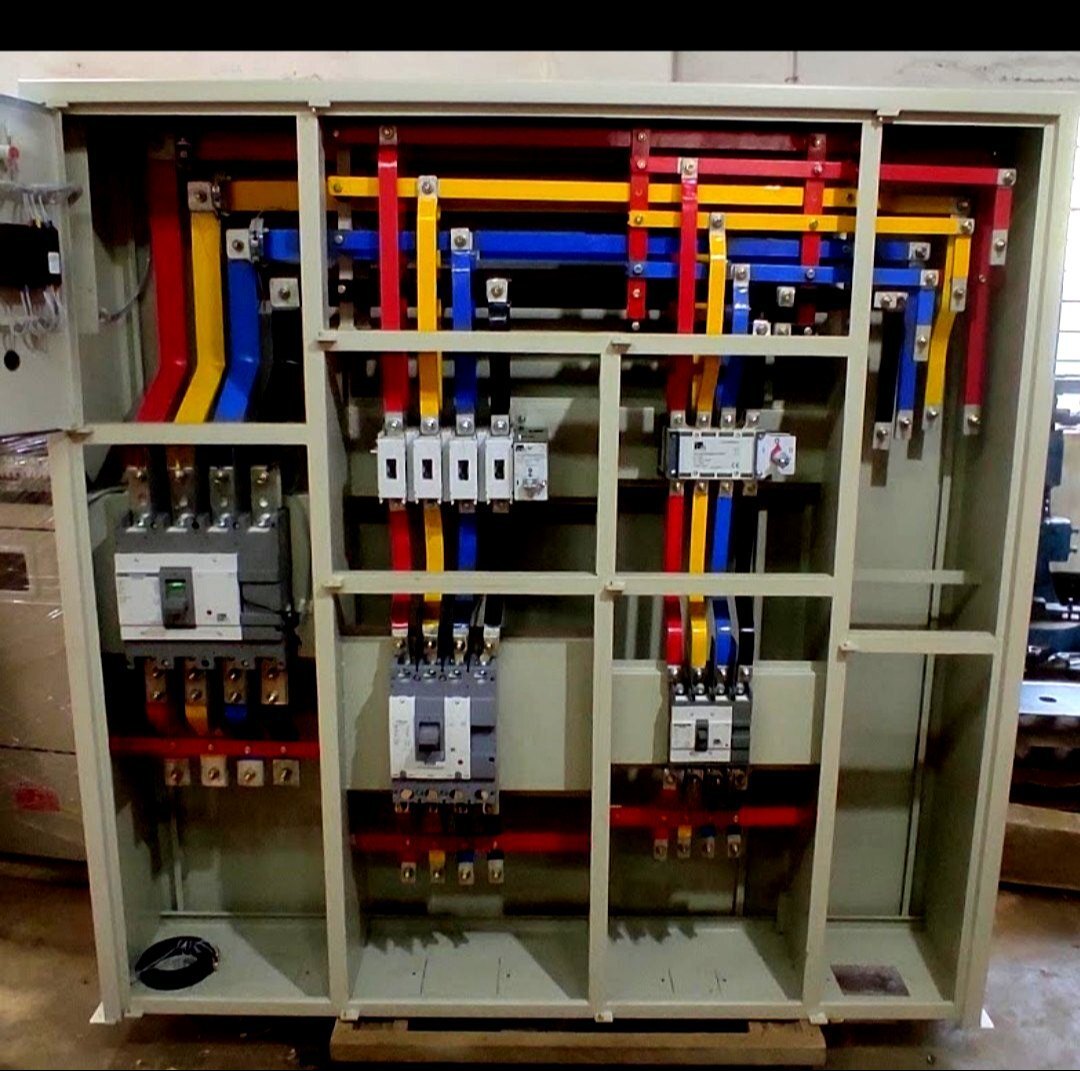

Busbar Distribution & Extended Busbar Trunking Panels
High-current electrolytic copper or aluminum busbar assemblies engineered for efficient power trunking across factory floors and riser shafts. Fully insulated with heat-shrinkable PVC/SMC shrouds and high-strength busbar supports.

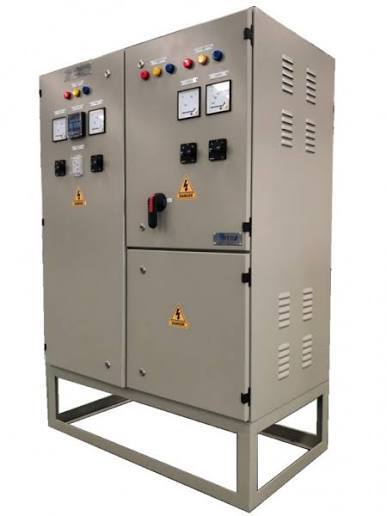

Distribution Boards (DB) & Meter Panels
Compact indoor distribution boards and commercial multi-tenant energy meter distribution panels equipped with MCBs, RCCBs, and isolators.
Feeder Pillar & Outdoor Weatherproof Panels
IP55/IP65 rated outdoor weather-proof feeder pillars for industrial campuses, residential townships, and highway power distribution.

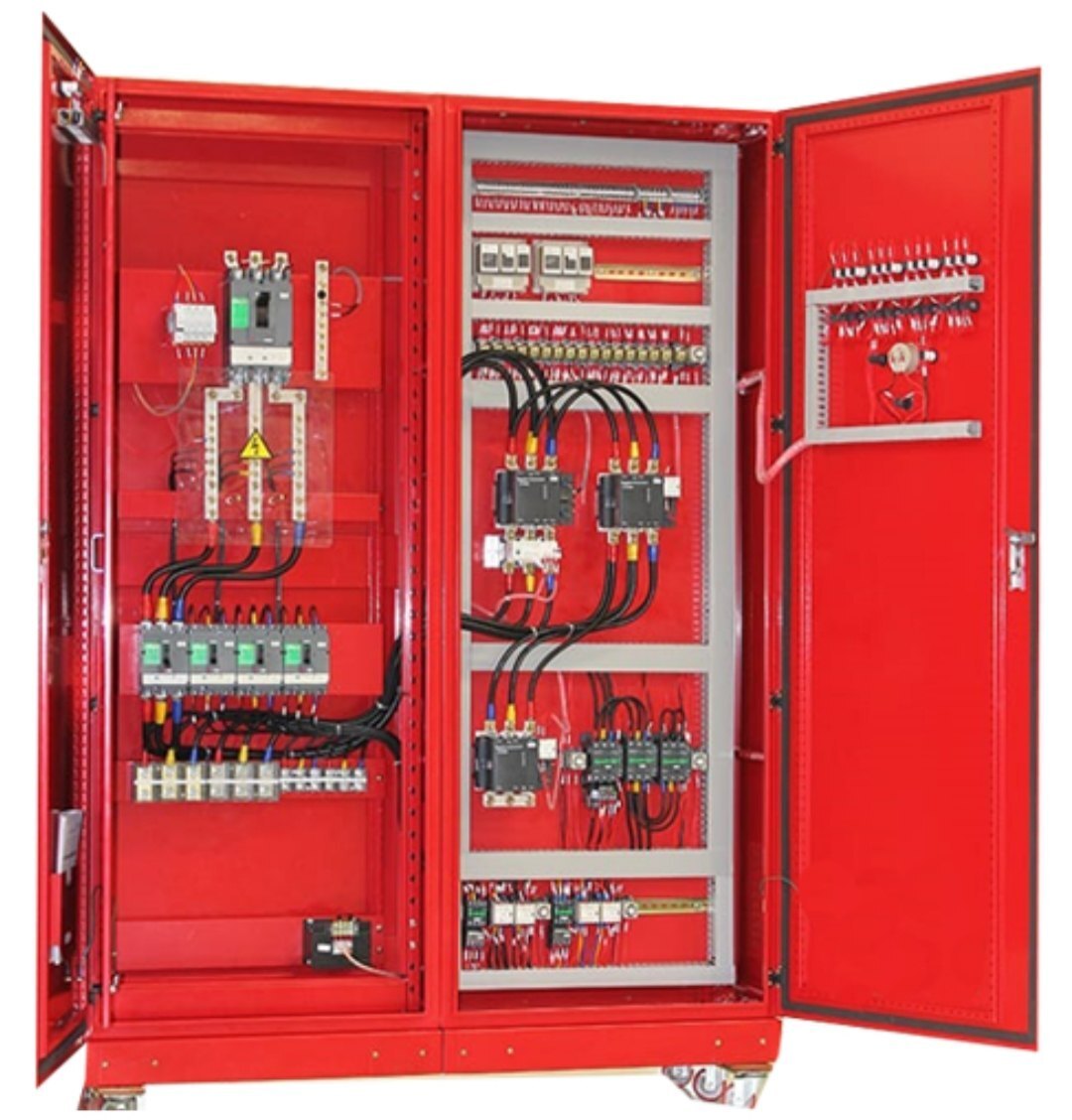

Fire Pump & Temperature Control Panels
Dedicated fire safety pump control panels compliant with NBC norms, and temperature control panels integrated with Tor Saturn controllers.
Panel Manufacturing Specifications
Standard technical parameters and build standards for SS Exim electrical panels.
| Specification Feature | Standard Rating / Material | Engineering Standard |
|---|---|---|
| Enclosure Sheet Metal | 1.6mm / 2.0mm CRCA Sheet Steel (Powder Coated RAL 7035 / 7032) | 7-tank anti-corrosion pre-treatment & epoxy powder coating |
| Busbar Material | Conductor material and grade as specified and documented for the project | Rated for specified current density (1.5A/sq.mm Cu, 1.0A/sq.mm Al) |
| Ingress Protection (IP) | IP42 / IP54 (Indoor), IP55 / IP65 (Outdoor Feeder Pillars) | IS/IEC 60529 standard compliant |
| Rated Voltage & Frequency | 415V AC 3-Phase 4-Wire, 50Hz | Insulation rating 690V AC / 1000V AC |
| Short-Circuit Fault Rating | 35kA / 50kA / 65kA for 1 second | Calculated busbar support spacing |
| Integrated Switchgear | Schneider Electric, ABB, Siemens, Havells, L&T, NOARK | Documentation requirements to be agreed for the quoted components |
| Certification & Routine Testing | Routine testing appropriate to the equipment and agreed scope (insulation resistance, power-frequency withstand voltage, functional checks) | {{TBD}} (Type-tested designs per client SLD) |
In-House Engineering and Multi-brand Component Supply
When you order panels from SS Exim, you work directly with experienced panel designers who understand single-line diagrams (SLD) and site constraints.
- ✓ Specified Brand Switchgear: circuit breakers from Schneider Electric, ABB, Siemens, Havells, L&T and NOARK, supplied against the approved specification. Product origin and documentation are as supplied for the quoted item.
- ✓ Pre-Integrated IoT Options: Panels pre-wired with Tor Titan meters and Tor IoT gateways.
- ✓ Pan-India Delivery: Serving Mumbai, Pune, Bangalore, Gujarat, and industrial zones across India.
Frequently Asked Questions — Custom Panels
Which types of electrical panels does SS Exim manufacture?
SS Exim fabricates a comprehensive range of custom LT panels including Main Distribution Panels, Motor Control Center (MCC) Panels, APFC Panels, ATS Panels, Busbar Distribution Panels, Capacitor Panels, DB Boards, Feeder Pillars, Fire Pump Control Panels, and Street Light Panels.
Can I specify switchgear brand preferences for my panel order?
Panels can be quoted with brands identified in the consultant's approved vendor list, subject to product availability, the approved specification and applicable OEM terms.
How do I get a quote for a custom electrical panel?
Simply send your Single-Line Diagram (SLD) or load schedule to info@ss-exim.com or submit an enquiry on our Contact page. Our engineering team will review it and provide a detailed bill of materials (BOM) quote.
Get a Quote for Your Electrical Panel Project
Submit your panel drawing or load details to SS Exim for fast pricing and delivery schedules.
