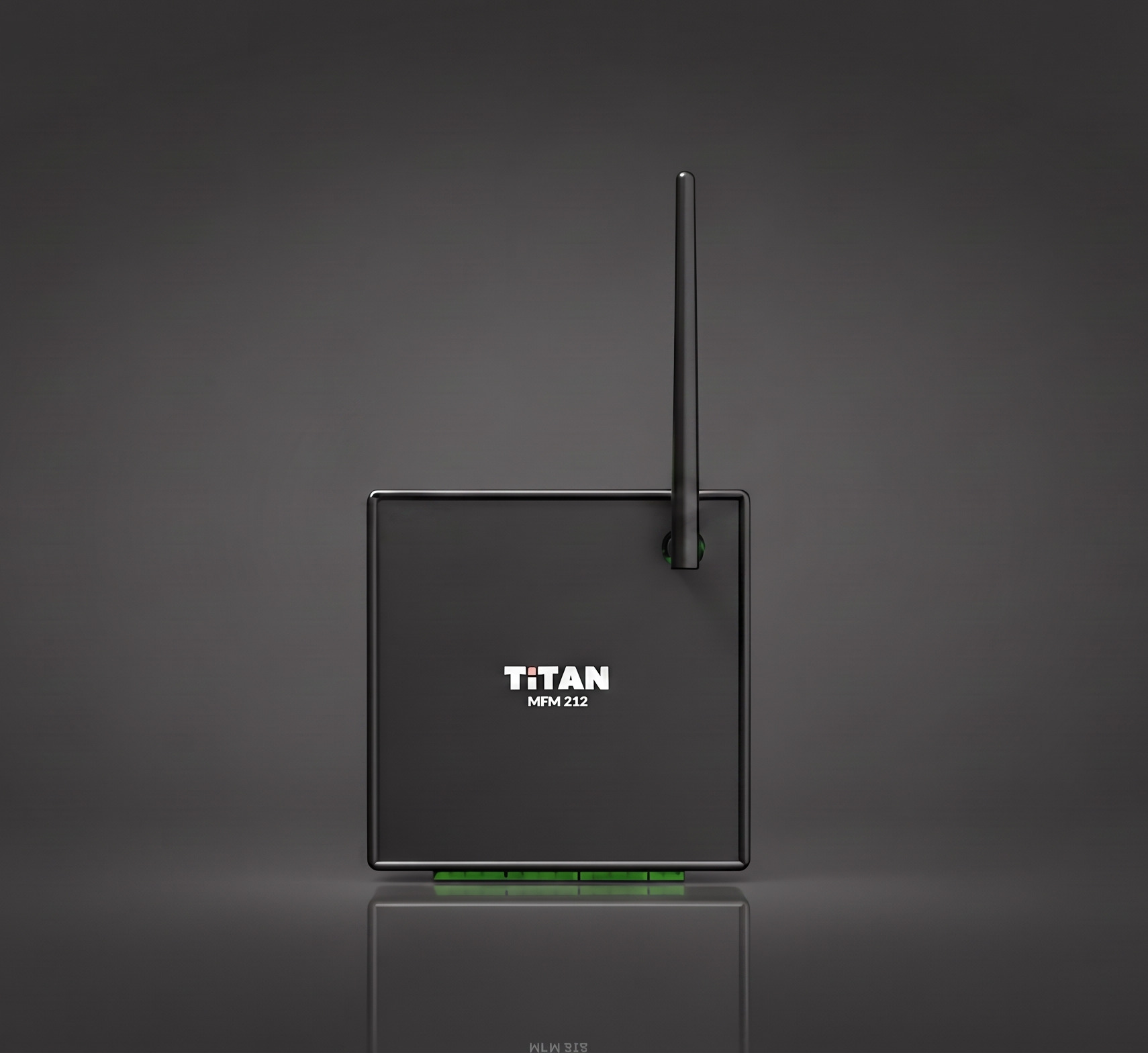

Tor Titan Smart Multifunction Energy Meter (PMU / MFM)
Industrial power monitoring unit capturing ~68 electrical parameters with high precision for energy audit, power quality assessment, and cloud BMS integration.
Precision Energy Telemetry & Power Quality Analytics
The Tor Titan is a high-performance smart multifunction energy meter (MFM) and Power Monitoring Unit (PMU) engineered specifically for industrial power distribution and IBMS telemetry. Unlike basic kWh meters, Tor Titan continuously measures approximately 68 electrical parameters across 3-phase and 1-phase electrical networks.
By capturing real-time voltage unbalance, current harmonics (THD), power factor, frequency fluctuations, and active/reactive energy demand, the Tor Titan empowers plant managers and facility engineers to identify power losses, avoid utility penalty surcharges, and prevent transformer overloads.
Tor Titan Technical Specifications
Key electrical ratings, communications, and measurement parameters.
| Specification Feature | Standard Rating / Capacity | Technical Note |
|---|---|---|
| Measured Parameters | ~68 Electrical Parameters (V, I, kW, kVA, kVAr, PF, Hz, THD, kWh, kVAh) | Comprehensive 3-Phase & 1-Phase power quality analysis |
| Measurement Accuracy | Class 0.5S / Class 1.0 (IEC 62053-22 standard compliant) | High precision CT / PT secondary sensing |
| Communication Protocols | Modbus RTU (RS485), Wi-Fi, BLE, Ethernet | Seamless integration with Tor Jupiter / Venus gateways |
| Current Secondary (CT) | 1A or 5A secondary inputs | Configurable CT ratio via front interface or software |
| Voltage Sensing Range | 30V to 300V AC (Phase-to-Neutral), up to 520V AC (Phase-to-Phase) | Direct connection for LT networks; PT required for HT |
| Auxiliary Power Supply | 80V – 300V AC / DC | {{TBD}} (standard auxiliary rating) |
| Dimensions & Mounting | Standard 96x96mm panel flush mount | Fits standard electrical panel cutouts |
Where Tor Titan Energy Meters Are Deployed
LT & HT Panel Boards
Integrated into main LT distribution panels, APFC panels, and PCC switchboards to continuously log sub-feeder power consumption.
Industrial Energy Audits
Tracking departmental energy usage in textile mills, chemical plants, auto manufacturing, and pharmaceuticals for ISO 50001 compliance.
Commercial Tenant Sub-Metering
Accurate sub-metering for shopping malls, IT parks, and multi-tenant commercial complexes with automated billing integration.
Complete Metering & Panel Integration Expertise
SS Exim supplies and integrates meters into energy-management systems. Pre-configured meter panels, CT sizing support and gateway setup are subject to the approved project scope and applicable OEM terms.
- ✓ Product Documentation: Calibration, traceability and warranty documents depend on the exact quoted product and applicable OEM terms.
- ✓ Turnkey Integration: Pre-wired into custom meter distribution panels.
- ✓ Pan-India Field Support: On-site setup assistance in Mumbai, Pune, Bangalore, and across India.
Frequently Asked Questions — Tor Titan Meters
How many electrical parameters does Tor Titan measure?
Tor Titan measures approximately 68 electrical parameters, including phase voltages, line currents, active power (kW), reactive power (kVAr), apparent power (kVA), power factor, frequency, total harmonic distortion (THD), and energy registers.
Is Tor Titan suitable for industrial APFC panels?
Yes. Due to its precise power factor and harmonic distortion monitoring, Tor Titan is ideal for APFC (Automatic Power Factor Correction) panels, allowing real-time capacitor bank switching control.
What communication protocols are supported?
Tor Titan supports Modbus RTU over RS485, Wi-Fi, BLE, and Ethernet, enabling direct connection to Tor IoT gateways, third-party PLCs, or SCADA software.
Upgrade to Smart Power Analytics With Tor Titan
Contact SS Exim for bulk pricing, CT ratio guidance, or panel mounting requirements.
