High-Bay LED & Industrial Flood Lighting Solutions
Heavy-duty, high-lumen LED luminaires engineered for warehouses, manufacturing plants, logistics bays, and outdoor industrial yards across Mumbai, Pune, Bangalore, and pan-India.
Energy-Efficient Illumination for High-Ceiling & Outdoor Bays
Industrial facilities require high-intensity, glare-free illumination that consumes minimal power and withstands continuous 24/7 operation. SS Exim supplies and installs heavy-duty LED High-Bay lights and outdoor LED Floodlights engineered for manufacturing floors, steel fabricators, chemical plants, and logistics parks.
Featuring extruded aluminum thermal heatsinks, high-efficiency Meanwell / Philips drivers, and toughened glass optics, our luminaires deliver up to 60% energy savings over traditional metal-halide fixtures while integrating easily into IBMS smart lighting automation.
Industrial Luminaire Categories

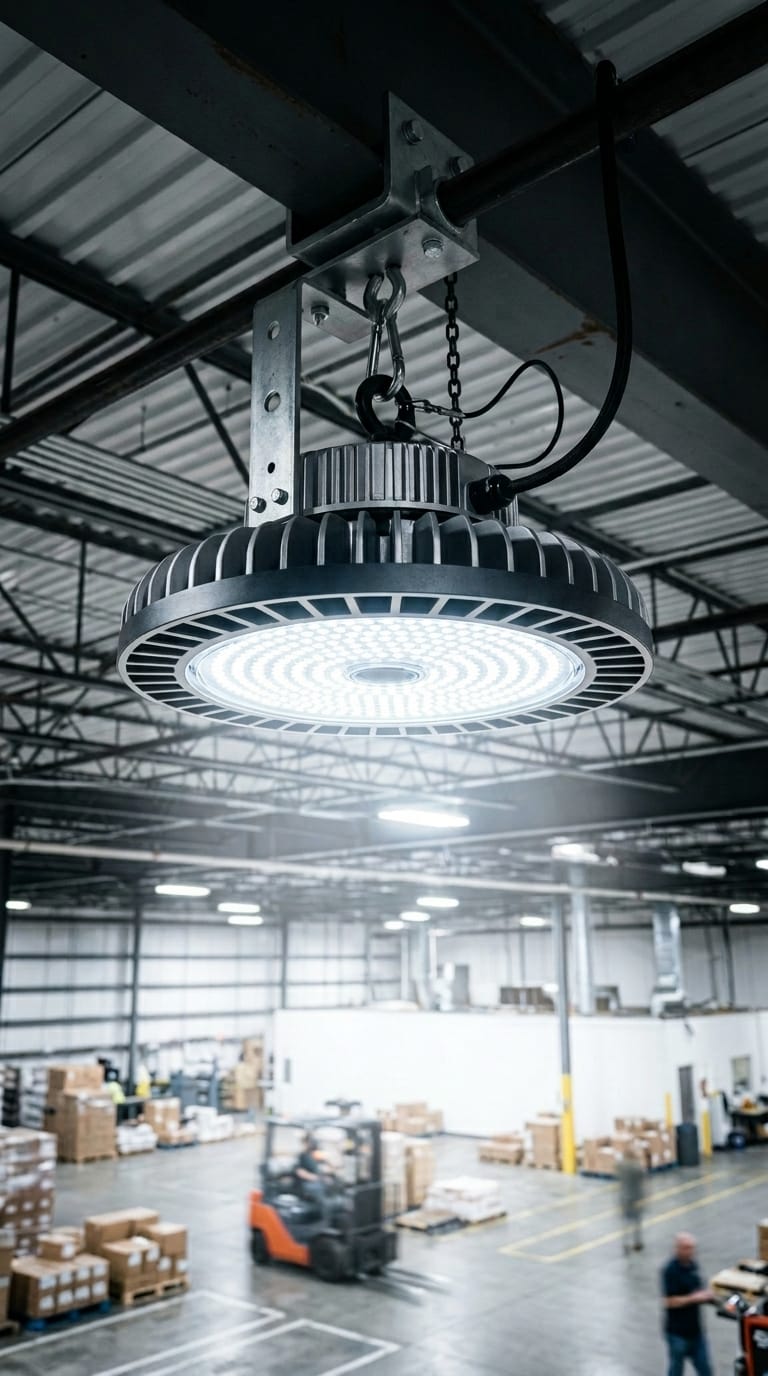

LED High-Bay Luminaires
High-efficiency UFO and linear LED high-bay fixtures (100W, 150W, 200W, 250W). Optimized for mounting heights between 6m and 18m in assembly plants and logistics warehouses.
- ✓ High efficacy: 140 – 160 Lumens per Watt
- ✓ Die-cast aluminum thermal management heatsink
- ✓ Optional PIR motion sensor for automatic dimming
Heavy-Duty Outdoor LED Floodlights
Robust IP66 waterproof LED floodlights (50W to 500W) designed for perimeter security, container yards, transformer yards, and street light panel control.
- ✓ IP66 weatherproof & IK08 impact resistance
- ✓ Surge protection up to 10kV
- ✓ Wide beam angle optics for uniform yard illumination
Industrial Lighting Technical Specifications
Standard ratings across high-bay and floodlight series.
| Specification Feature | LED High-Bay Series | LED Floodlight Series |
|---|---|---|
| Wattage Options | 100W / 150W / 200W / 250W | 50W / 100W / 150W / 200W / 300W / 500W |
| Luminous Efficacy | 140 – 160 lm/W | 130 – 150 lm/W |
| Color Temperature (CCT) | 5700K Cool White / 4000K Neutral White | 5700K Cool Daylight |
| Power Factor & THD | PF > 0.95, THD < 10% | PF > 0.95, THD < 10% |
| Ingress Protection | IP65 dust/water resistant | IP66 heavy waterproof rating |
| Input Voltage Range | 100V – 277V AC, 50/60Hz | 100V – 300V AC (Wide operating range) |
| Lifespan L70 | > 50,000 Hours | > 50,000 Hours |
| Warranty Coverage | {{TBD}} (Standard 3-5 Year replacement warranty) | {{TBD}} (Standard 3-5 Year replacement warranty) |
Lux Calculation, Lighting Panels & Turnkey Supply
SS Exim doesn't just sell fixtures—we assist clients with Dialux lighting design calculations to ensure optimal lux levels across factory workbenches and warehouse aisles.
- ✓ Turnkey Control Integration: Pre-wired with Street Light Panels and timer automation.
- ✓ Authorized Brand Supply: Supply from top brands including Havells and specialized OEM industrial series.
- ✓ Pan-India Delivery: Serving Mumbai, Pune, Bangalore, and all industrial estates.
Frequently Asked Questions — Industrial Lighting
What wattage of LED high bay is required for a 10-meter ceiling?
For a 10-meter warehouse or factory ceiling height, a 150W to 200W LED high bay (140 lm/W) typically delivers the recommended 200–300 Lux on the floor level.
Can these lights withstand voltage fluctuations on industrial grids?
Yes. Our industrial fixtures feature wide operating voltage drivers (100V to 300V AC) with built-in surge protection (up to 10kV), protecting against voltage spikes.
Do you supply automated street light & lighting feeder panels?
Yes. SS Exim custom fabricates outdoor lighting feeder panels equipped with astronomical timers, photocells, and contactors for automated yard lighting control.
Upgrade Your Industrial Lighting & Save Energy
Contact SS Exim for high-bay datasheets, lux simulation, or bulk quotes.
Inquire Now
