Tor Saturn Programmable Controllers
Smart Direct Digital Controllers (DDC) — Saturn AHU Controller and Saturn Universal Controller — engineered for precision HVAC automation, VFD fan control, and industrial process loops.
Precision Climate & Automation Control
The Tor Saturn Controller Series provides high-density input/output (I/O) control for building management and HVAC systems. Available in dedicated Saturn AHU Controller and Saturn Universal Controller variants, these units execute localized closed-loop PID control for temperature, relative humidity, air static pressure, and motorized valve positions.
Integrated by SS Exim into custom panel enclosures across Mumbai, Pune, and Bangalore, Tor Saturn controllers connect directly to return air temperature sensors (Tor Mercury), differential pressure transmitters, VFD fan drives, and Modbus networks.
Tor Saturn Family Options
Tor Saturn AHU Controller
Dedicated HVAC AutomationSpecifically programmed for Air Handling Unit (AHU) automation. Includes dedicated routines for supply fan VFD modulation, chilled water 2-way / 3-way valve positioning, fresh air damper control, and dirty filter alarm differential sensing.
- ✓ Closed-loop PID temperature & humidity control
- ✓ VFD fan speed modulation via 0-10V / 4-20mA
- ✓ Modbus RTU interface for IBMS 4.0 integration
Tor Saturn Universal Controller
Flexible Multi-Loop DDCA general-purpose programmable DDC controller with customizable Analog Inputs (AI), Digital Inputs (DI), Analog Outputs (AO), and Relay Digital Outputs (DO). Ideal for exhaust ventilation, pump sequencing, and custom industrial automation.
- ✓ User-configurable I/O mappings
- ✓ Standalone fallback logic for high uptime
- ✓ Direct connection to BMS sensors array
Tor Saturn Technical Specifications
Standard ratings and I/O capacity breakdown.
| Specification Parameter | Tor Saturn AHU Controller | Tor Saturn Universal Controller |
|---|---|---|
| Primary Application | AHU, Treated Fresh Air (TFA), Cleanrooms | Pump Rooms, Dampers, Exhaust, General DDC |
| Analog Inputs (AI) | PT1000 / NTC10k / 0-10V (Temp, RH, DP) | Configurable 0-10V / 4-20mA / Resistance |
| Digital Inputs (DI) | Potential-free contacts (Fan Status, Filter DP) | Potential-free dry contacts |
| Analog Outputs (AO) | 0-10V DC (Chilled Water Valve, VFD Speed) | 0-10V DC / 4-20mA proportional outputs |
| Relay Outputs (DO) | 230V AC / 5A potential-free relays | 230V AC / 5A switching relays |
| Communication Port | RS485 Modbus RTU / Ethernet | RS485 Modbus RTU / Ethernet |
| Supply Voltage | 24V AC/DC ±10% | {{TBD}} (24V AC/DC standard) |
| Enclosure Rating | IP20 DIN-Rail enclosure | IP20 DIN-Rail enclosure |
Integrated Temperature & Starter Panel Building

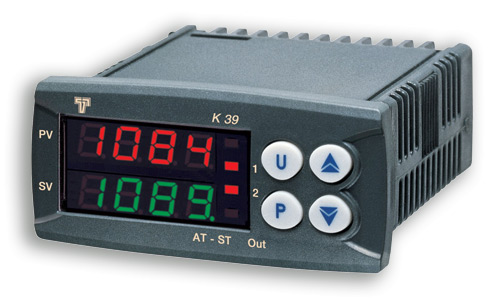

SS Exim designs and fabricates custom temperature control panels pre-wired with Tor Saturn controllers, Schneider/ABB contactors, terminal blocks, and front-door digital displays.
- ✓ Factory Pre-Commissioned: Control panels tested and calibrated prior to site dispatch.
- ✓ Turnkey BMS Wiring: On-site field sensor termination and Modbus loop testing.
- ✓ Pan-India Engineering Support: Serving Mumbai, Pune, Bangalore, and all major cities.
Frequently Asked Questions — Tor Saturn Controllers
What are the primary variants of the Tor Saturn Controller?
The Tor Saturn family includes the Saturn AHU Controller (dedicated to Air Handling Unit fan speed, valve, and filter control) and the Saturn Universal Controller (flexible DDC controller for general building automation).
Can Tor Saturn controllers operate independently without a central server?
Yes. Saturn controllers store local PID logic in non-volatile flash memory, enabling autonomous AHU and valve regulation even if central BMS server connection is lost.
Does SS Exim supply complete pre-wired control panels?
Yes, SS Exim custom fabricates LT control panels containing Tor Saturn controllers, circuit protection, VFDs, and relays for easy plug-and-play field installation.
Optimize Your HVAC Automation With Tor Saturn
Contact SS Exim for controller datasheets, wiring schematics, or panel quotes.
